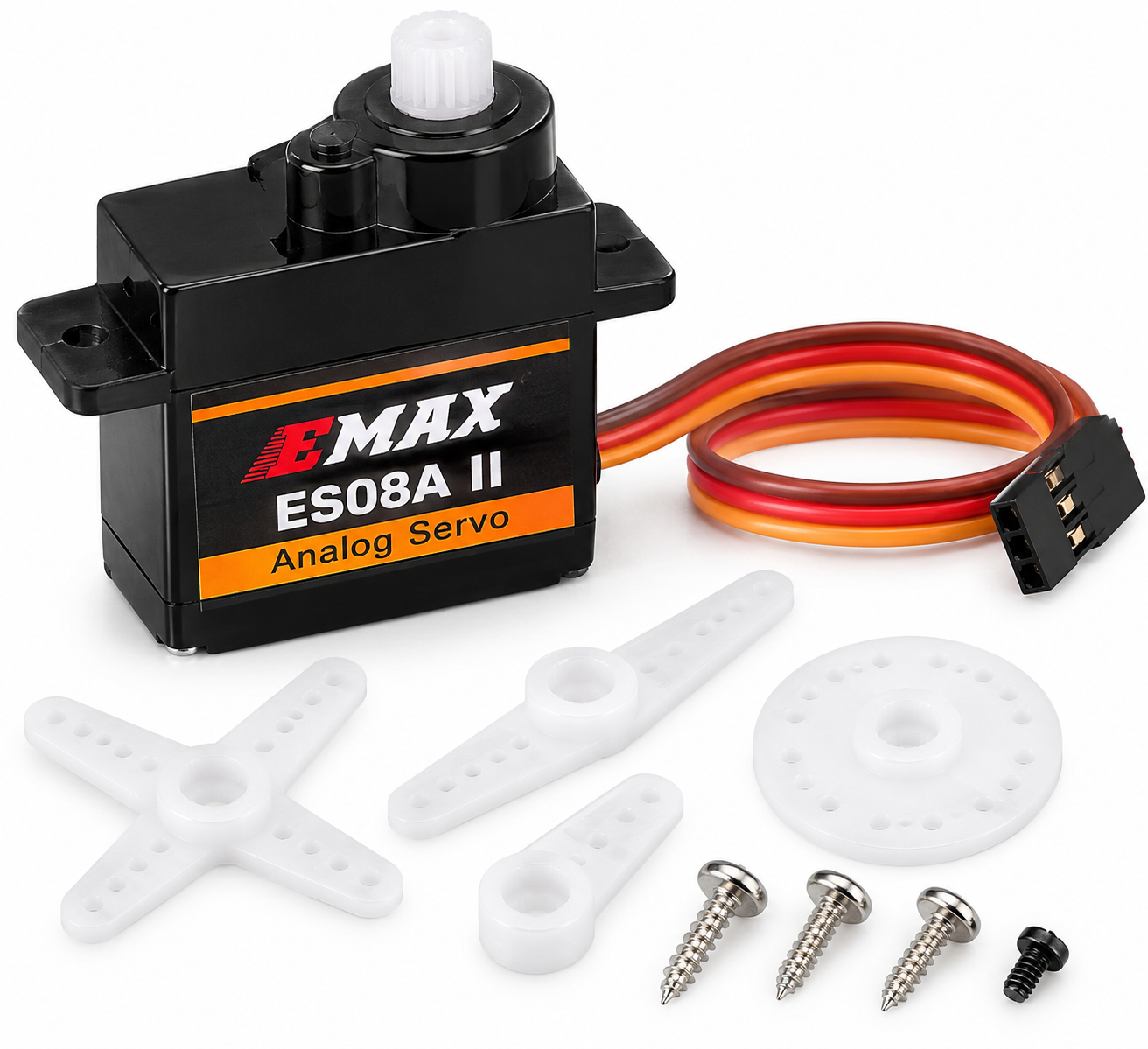

The EMAX ES08A II 4.8V–6V Mini Plastic Gear Analogue Servo is a lightweight and compact 8.5g servo designed for small RC aircraft, gliders, robotics, and other lightweight applications. Its plastic gear mechanism provides a cost-effective and lightweight solution while delivering reliable and precise movement.
With an operating voltage of 4.8V–6.0V, the ES08A II provides up to 1.8 kg·cm stall torque at 6V and a fast operating speed of 0.10 sec/60° at 6V. Its compact size and low weight make it ideal for applications where space and overall weight are important considerations.
The servo features a standard JR/Futaba-compatible plug, making it easy to integrate with compatible RC receivers and control systems.
| Brand | EMAX |
|---|---|
| Model | ES08A II |
| Type | Analog Servo |
| Operating Voltage | 4.8V – 6V |
| Torque | 1.5 kg·cm @ 4.8V / 1.8 kg·cm @ 6V |
| Speed | 0.12 sec/60° @ 4.8V / 0.10 sec/60° @ 6V |
| Gear Material | Plastic |
| Weight | 8.5 g |
| Dimensions | 23 × 11.5 × 24 mm |
