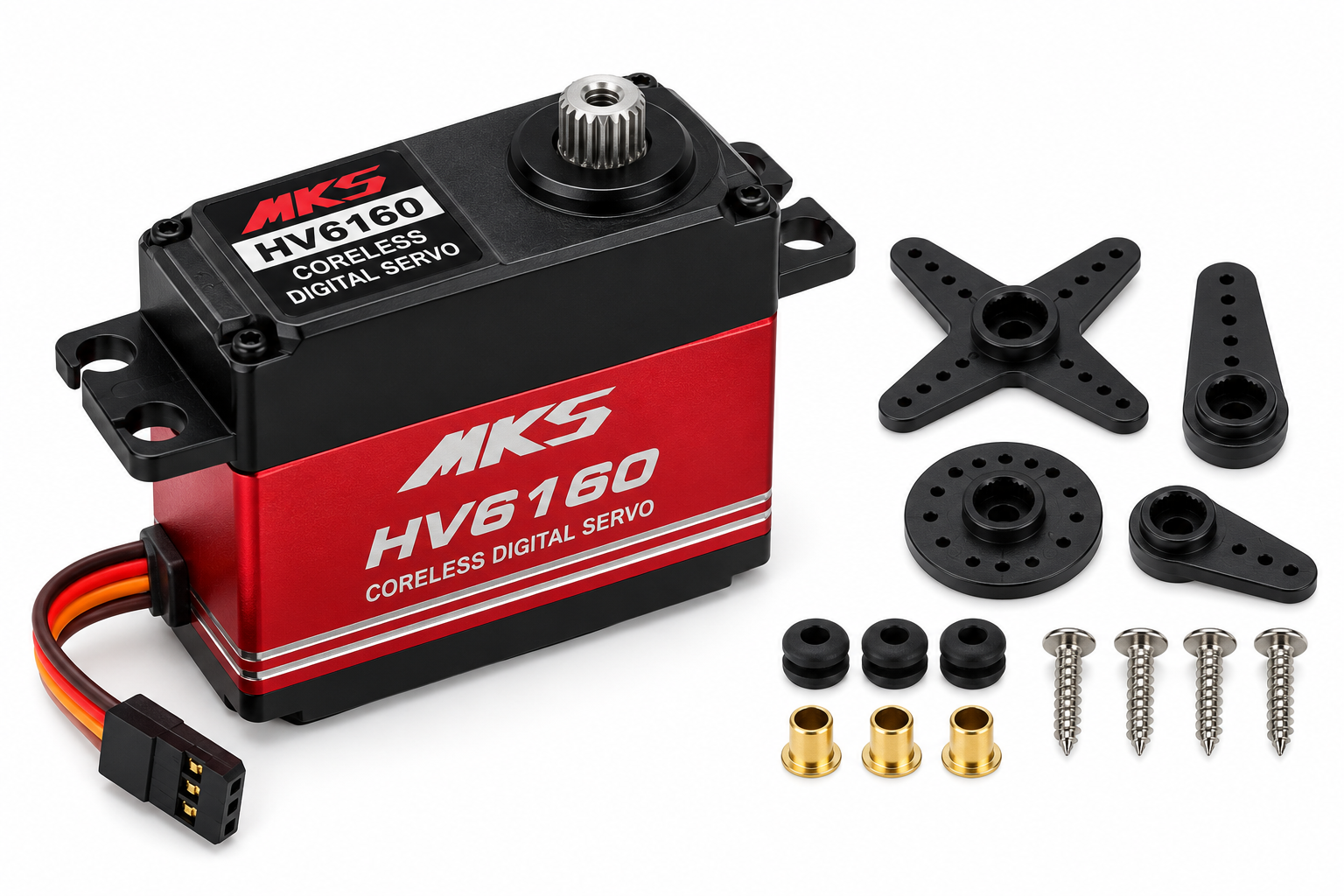

The MKS HV6160 is a compact, high-torque high-voltage digital servo designed for RC aircraft, gliders, and other applications requiring precise and powerful control in a slim form factor. It features a coreless motor, metal alloy gears, and dual oil-retaining bearings, providing smooth operation and reliable performance under high loads. With an operating voltage of 4.8–8.4V, it delivers up to 18.6 kg·cm of torque at 8.2V while maintaining a compact 10 mm-wide profile, making it particularly suitable for thin wings, ailerons, flaps, and tail surfaces.
| Brand | MKS |
|---|---|
| Model | HV6160 |
| Servo Type | Digital High-Voltage Servo |
| Motor Type | Coreless |
| Gear Material | Metal Alloy |
| Operating Voltage | 4.8–8.4V DC |
| Maximum Torque | 18.6 kg-cm @ 8.2V |
| Speed | 0.133 sec/60° @ 8.2V |
| Dimensions | 33 × 10 × 35.2 mm |
| Weight | 30.7 g |
| Bearings | 2 × Oil-Retaining Bearings |
| Application | RC Aircraft, Gliders, Ailerons, Flaps |
