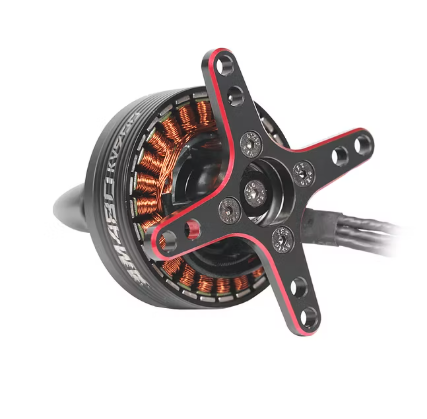

The T-Motor AM480 600KV Brushless Motor is a high-performance UAV motor engineered for smooth power delivery, high efficiency, and reliable operation. Built with premium materials and precision manufacturing, it delivers excellent thrust, low vibration, and dependable performance for demanding aerial applications.
Designed for endurance and stability, the AM480 600KV offers an optimal balance of power and efficiency, making it suitable for multirotor drones, aerial photography, surveying, mapping, industrial inspection, agriculture, and other professional UAV applications. Its durable construction ensures long service life and consistent performance, even during extended flight missions.
| Weight (Incl. Cable) | 145 g |
|---|---|
| Motor Dimensions | Φ49×70 mm |
| Lead | Enameled Wire 90 mm |
| Shaft Diameter | IN: 6 mm, OUT: 6 mm |
| RecommenIdle Current | (10V) 1.35 Aded Thrust/RPM |
| Max. Power (180s) | 960 W |
| Internal Resistance | 35 mΩ |
| Configuration | 24N28P |
| Rated Voltage (LiPo) | 5–6S |
| Peak Current (180s) | 45 A |
