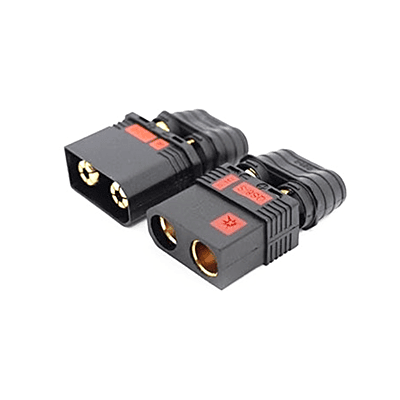

The QS8L Black Anti-Spark Connector Male & Female Combo is a high-performance power connector designed for safe and efficient high-current applications. Featuring advanced anti-spark technology, it reduces arcing during battery connections, protecting both the connector and electronic components from damage. Constructed with a durable nylon housing and gold-plated brass contacts, it ensures excellent conductivity, low resistance, and long-lasting performance. Its secure locking design provides a stable connection, making it ideal for drones, RC vehicles, electric bikes, battery packs, robotics, and other high-power systems.
| Housing Material | High-Strength Nylon |
|---|---|
| Contact Material | Gold-Plated Brass |
| Current Rating | Up to 180A |
| Peak Current | Up to 300A |
| Voltage Rating | Up to 500V DC |
| Recommended Wire Size | 8–12 AWG |
| Anti-Spark Feature | Yes |
| Operating Temperature | -30°C to +150°C |
| Applications | Drones, UAVs, RC Cars, RC Aircraft, Electric Bikes, Battery Packs, Robotics, Energy Storage Systems |
